Description
SPECIFICATIONS
1×3.5mm Port: Support stereo audio output, support mono microphone input, support line control.
1xDP Port: Complies with DP1.4 standard, supports HDCP1.4/2.3, video transmission bandwidth 16.2Gbps, supports HDR/DSC, does not support 3D/CEC/ARC, supports up to 3840×2160@120Hz resolution, backward compatible with 2560×1440@240/144/120/60Hz, 1920×1080@240/144/120/60Hz, etc.
1xRJ45 Port: Support 1000/100/10Mbps
2xHDMI Ports: Complies with HDMI2.0 standard, supports HDCP1.4/2.3, video transmission bandwidth 18Gbps, supports HDR, does not support 3D/CEC/ARC, supports up to 3840×2160@60Hz resolution, backward compatible with 2560×1440@144/120/60Hz, 1920×1080@240/144/120/60Hz, etc.
2xUSB-A Ports: Comply with USB2.0 standard, with theoretical maximum speed of 480Mbps, backward compatible with USB 1.1, not supporting BC1.2, used to connect USB devices such as keyboard, mouse, touchpad, speaker, camera, U disk, etc.
2xUSB-C Ports: Complies with USB3.2 Gen 2 standard, with a theoretical maximum rate of 10Gbps, backward compatible with USB3.0/USB2.0/USB 1.1, supports BC1.2, and is used to connect to touchpads, speakers, cameras, U disks, hard disks and other USB devices
Brand Name: UGREEN
Certification: CE,FCC
Compatible PC Devices: Laptop
Compatible Systems: Windows,MacOS,Linux,Chrome OS,iOS,iPad OS,Android
Funtion: Card Reader,RJ45,DP,3.5mm,USB-A,USB-C,Charging,HDMI-Compatible
High-concerned chemical: None
Input Port: USB-C, Support USB3.2 Gen2 10Gbps; HDMI2.0; DP1.4
Interface Type: USB 3.2 GEN 2
Origin: Mainland China
PD Charging Port: It complies with the PD3.0 standard protocol, does not support data transmission, supports different voltages of 20V/15V/12V/9V/5V, and is backward compatible with PD2.0; it supports up to 20V/5A 100W input, uses dynamic pre-deduction, deducts 5W for power below 45W, 10W for power between 45W and 90W, and 15W for power above 90W, and supports up to 85W for computer charging; it is used to connect a PD power adapter to power the docking station and charge the main device.
Package: Yes
Plug Type: None
Ports: 12

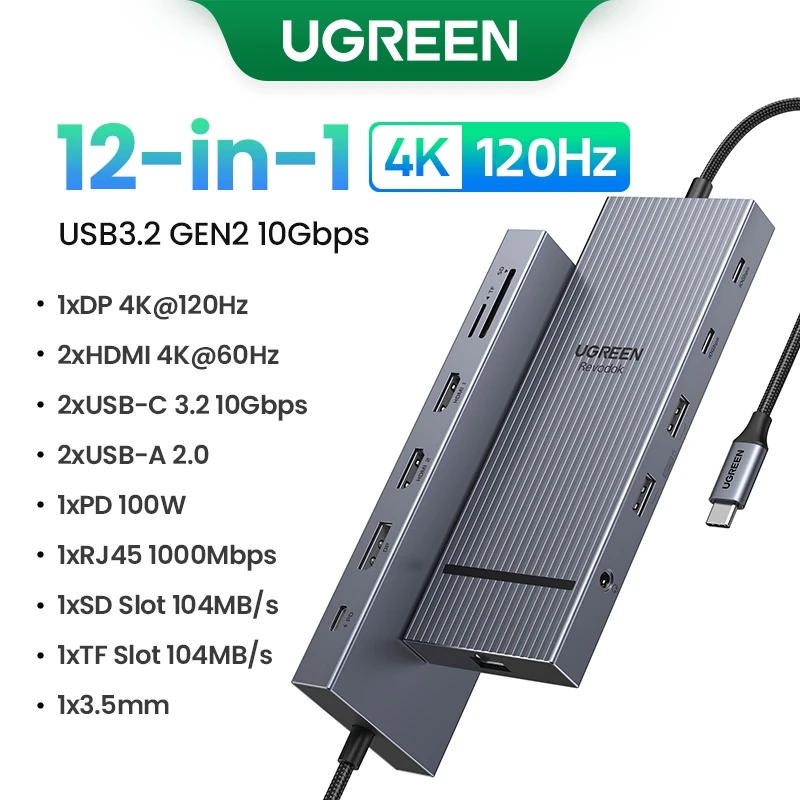

Product Name: 12-in-1 USB-C HUB / USB-C HUB / USB HUB / Docking Station / USB Splitter / USB Expander
SD&TF Ports: Support SD3.0 protocol, theoretical maximum transfer rate 104MB/s, support 2 cards read and write simultaneously.
Standard: USB 3.2 Gen2
Important Note:

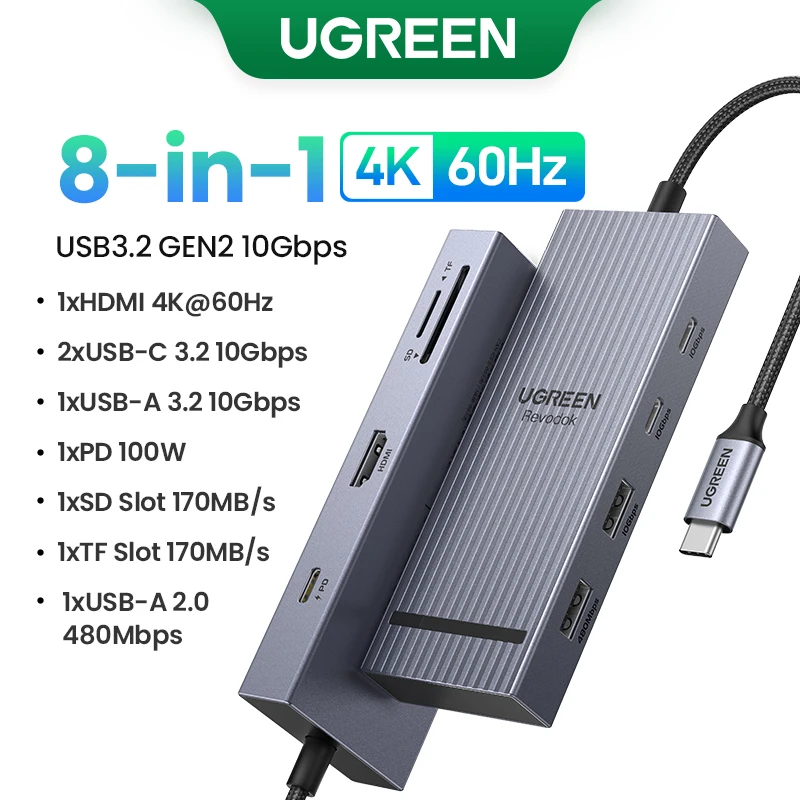

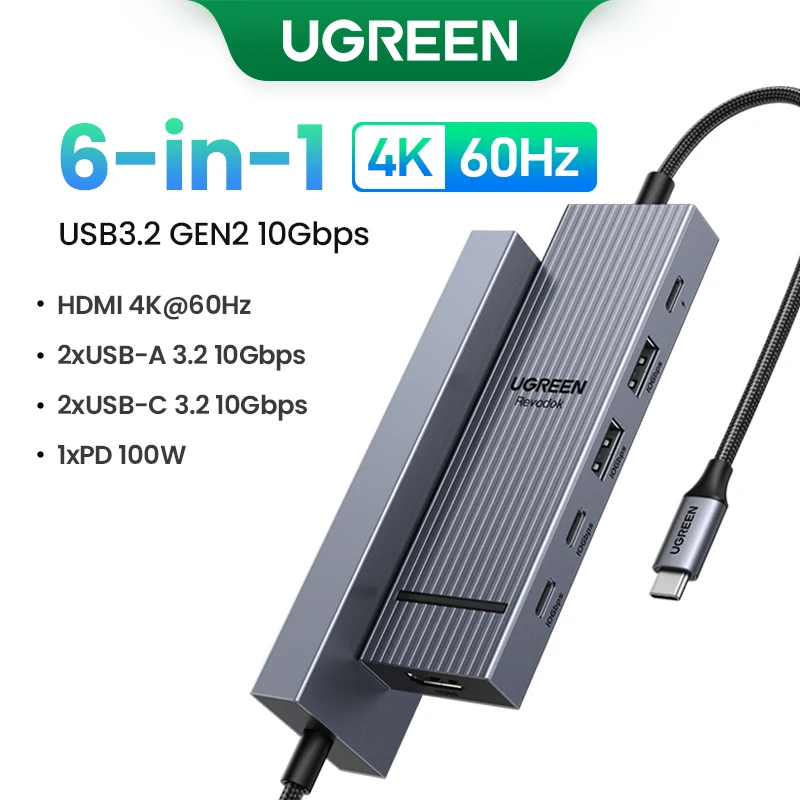

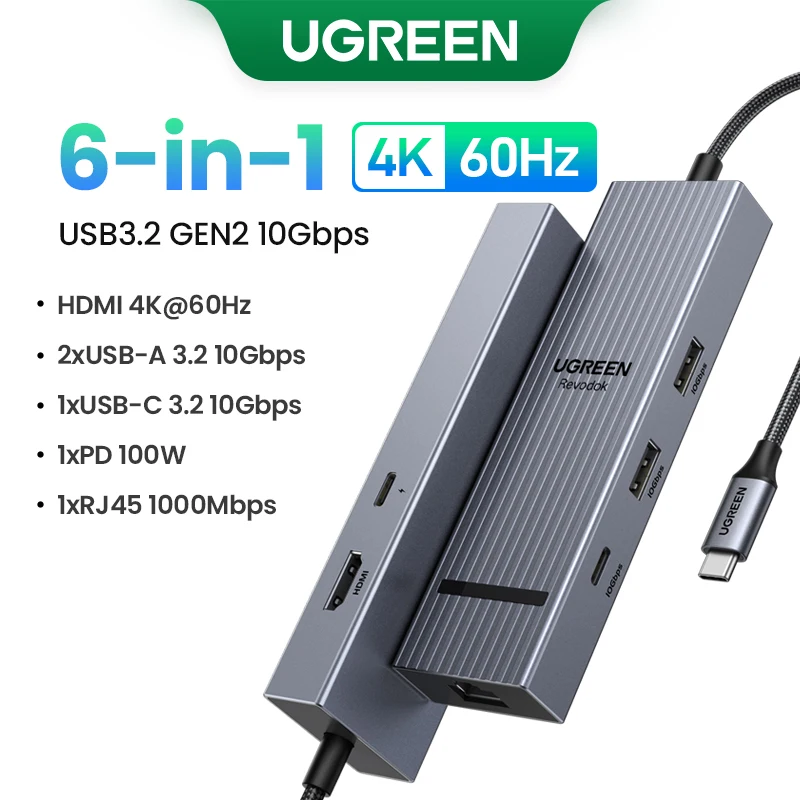

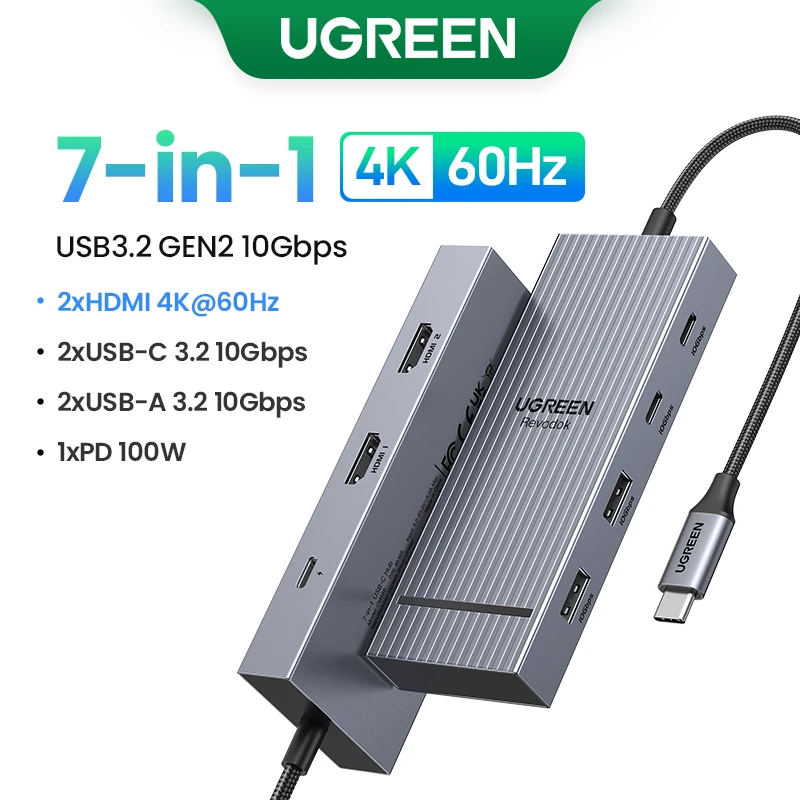

There are 7 hubs with different interface combinations available for purchase under this link. Please carefully confirm which product you need before purchasing to avoid purchasing errors.

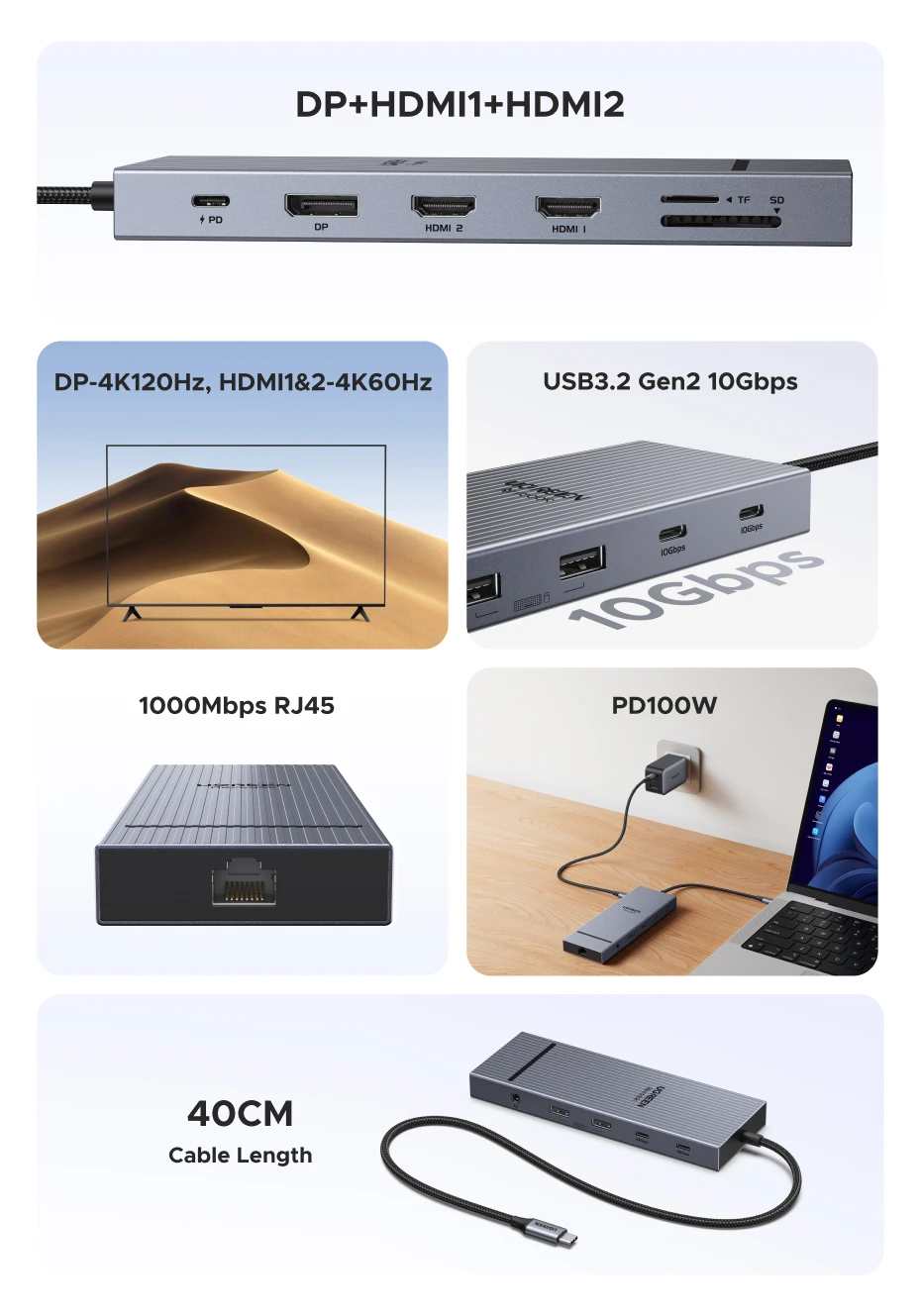

Triple Display 10 Gbps USB-C HUB
DP-4K120Hz, HDMI1&2-4K60Hz

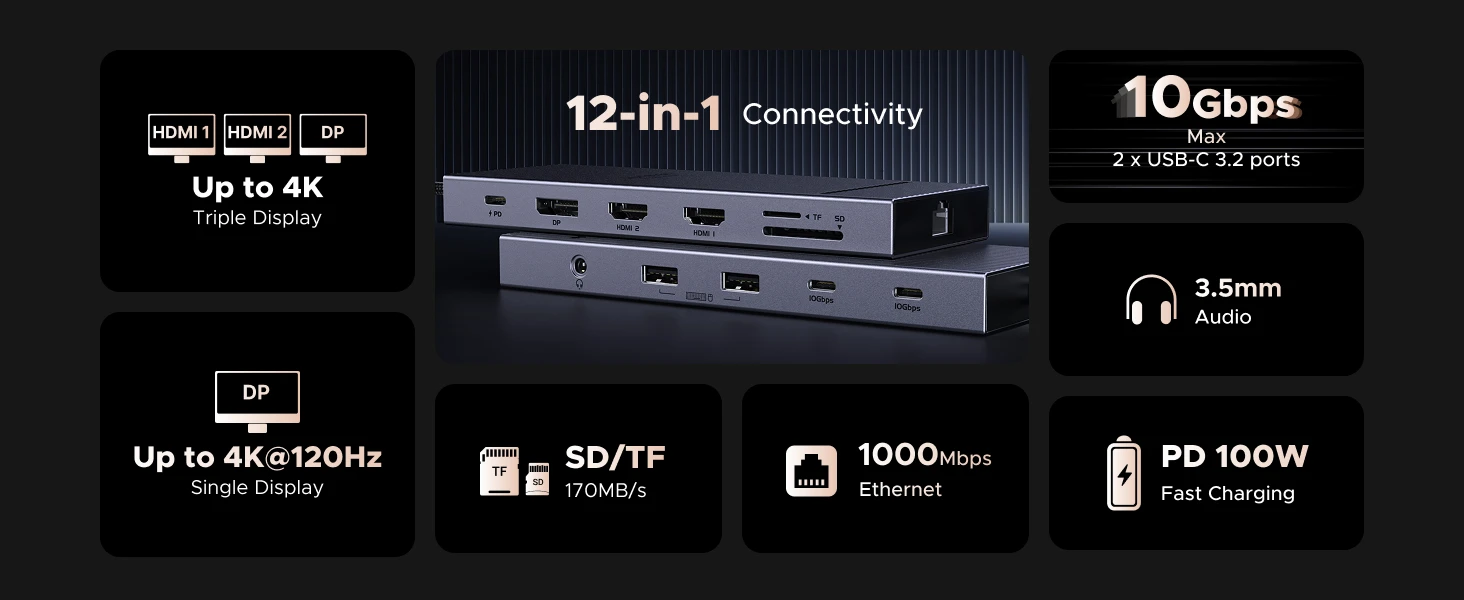

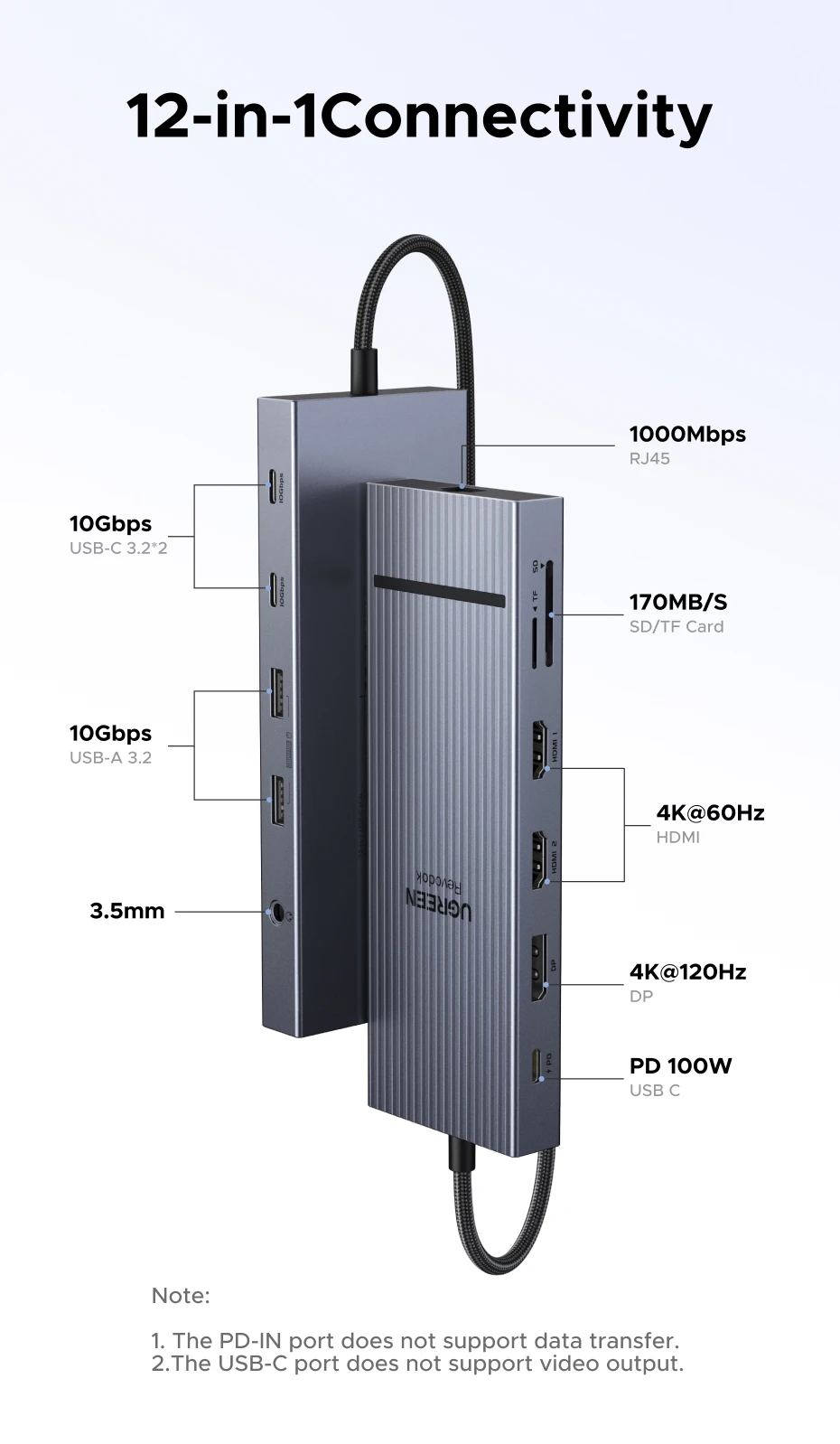

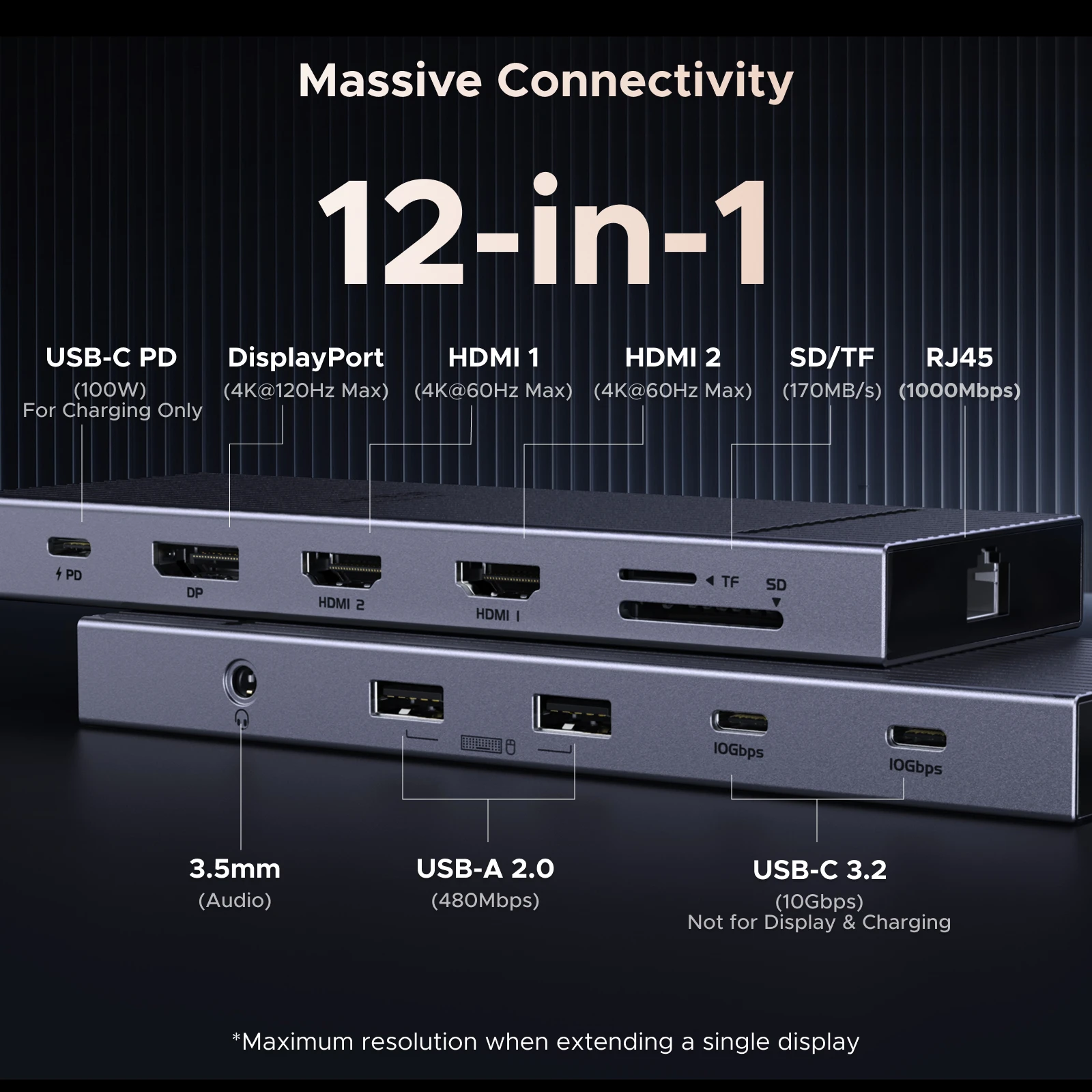

12-in-1 Connectivity
Single DP 4K@120Hz Display
Complies with DP 1.4 standard, supports HDCP 1.4/2.3, video transmission bandwidth 16.2 Gbps, supports HDR/DSC, does not support 3D/CEC/ARC, supports up to 3840×2160@120Hz resolution, backward compatible with 2560×1440@240/144/120/60Hz, 1920×1080@240/144/120/60Hz, etc.

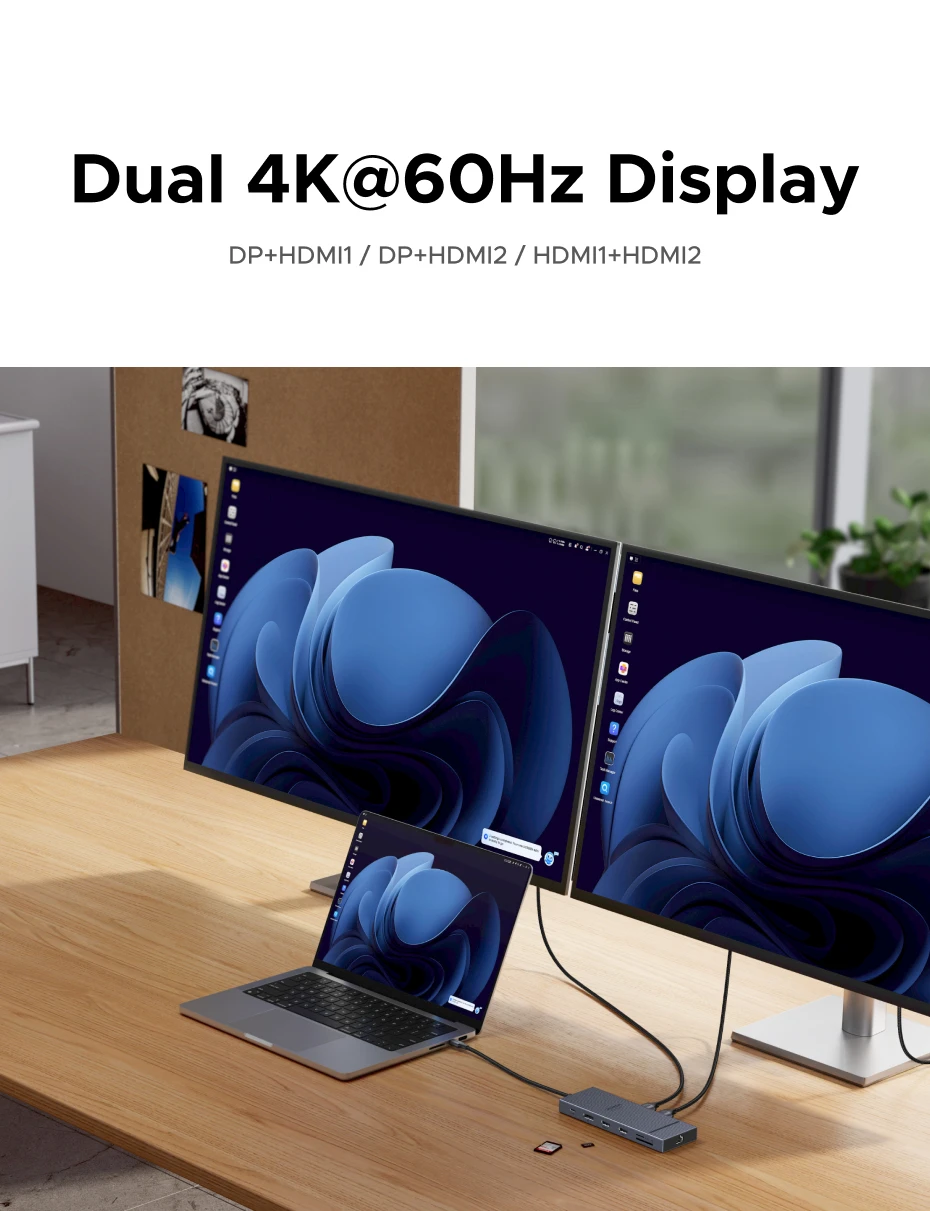

DuaI 4K@60Hz Display
DP+HDMI1 / DP+HDMI2 / HDMI1+HDMI2

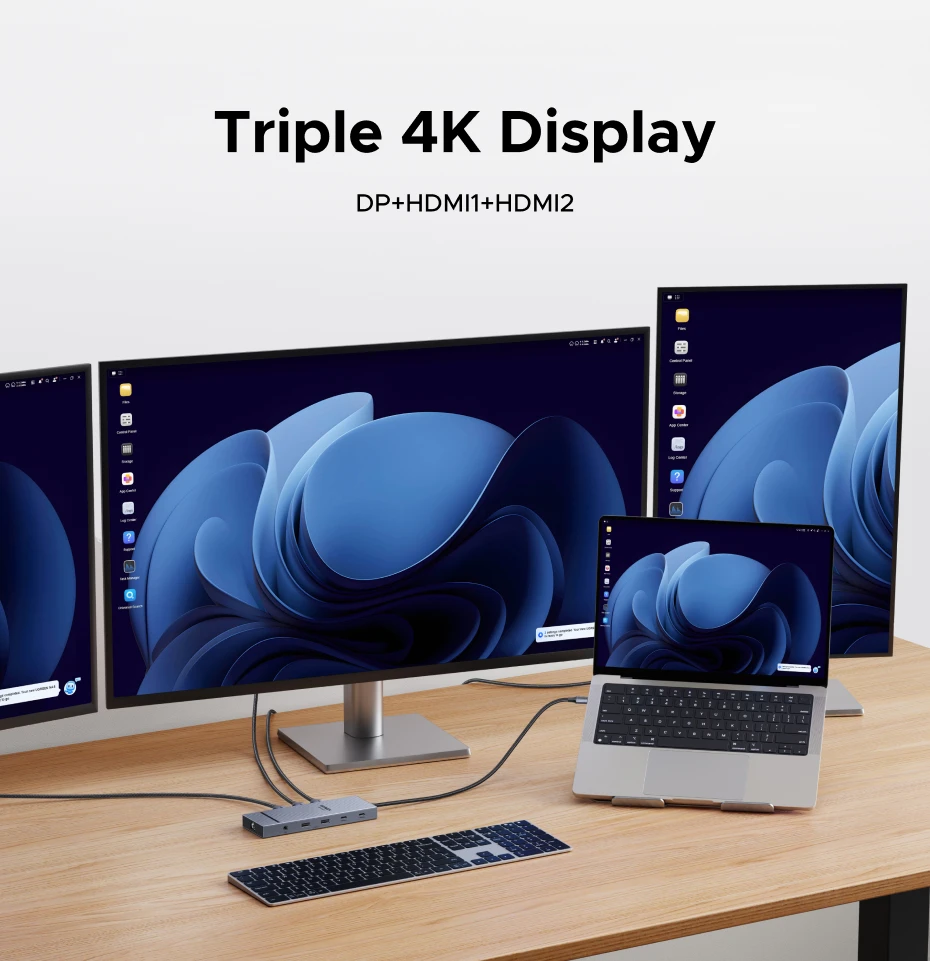

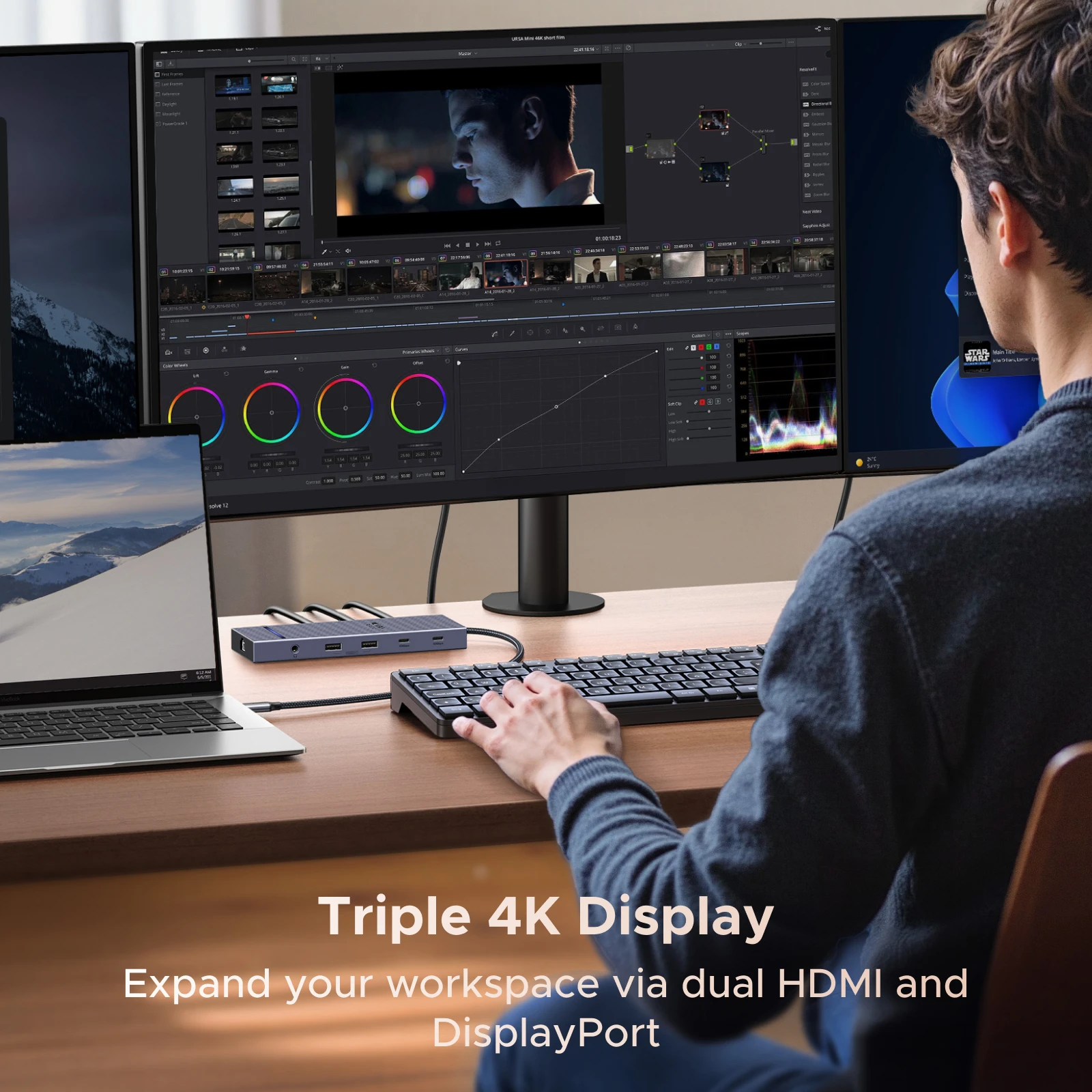

Triple 4K Display
DP+HDMI1+HDMI2

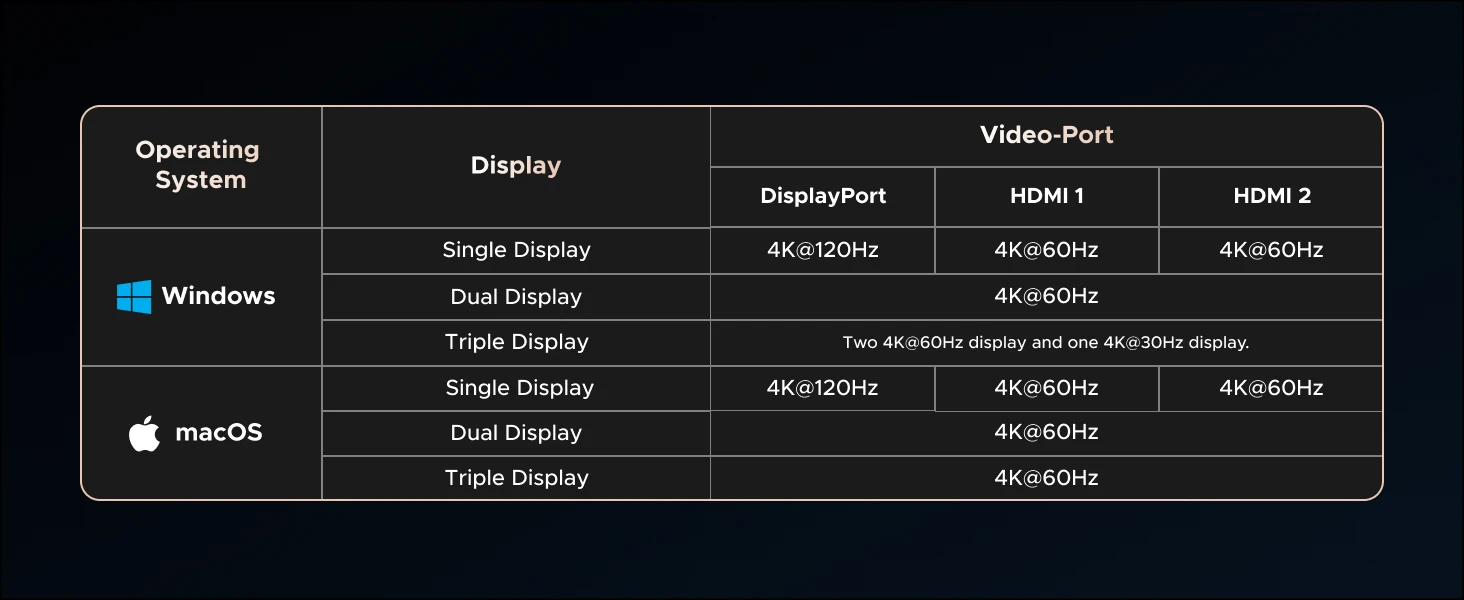

Windows: 4K@60Hz for any 2 ports, 4K@30Hz for the remaining 1 port.
macOS: All 4K@60Hz.

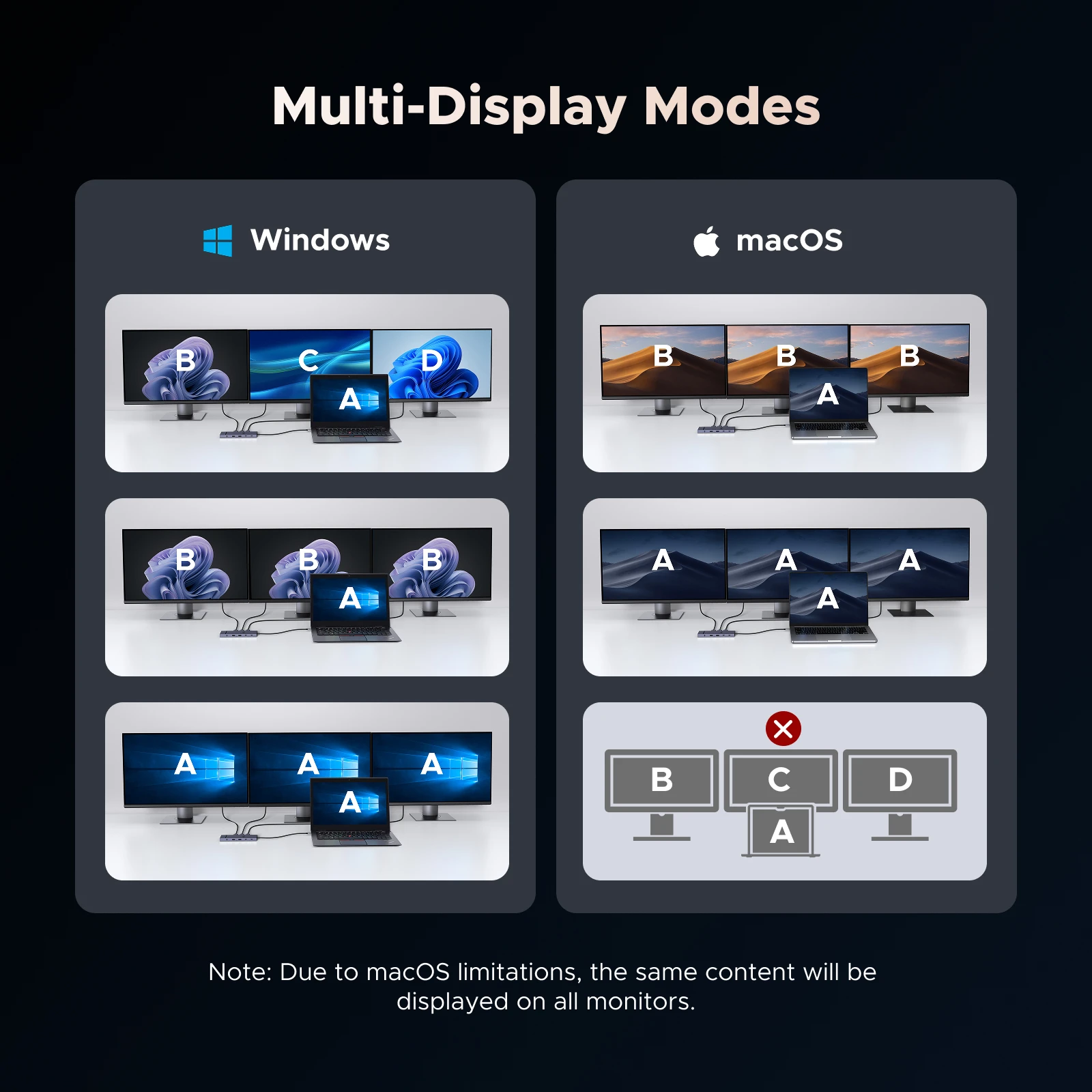

Multi-Display Modes for Windows
Mirror Mode & Extend Mode

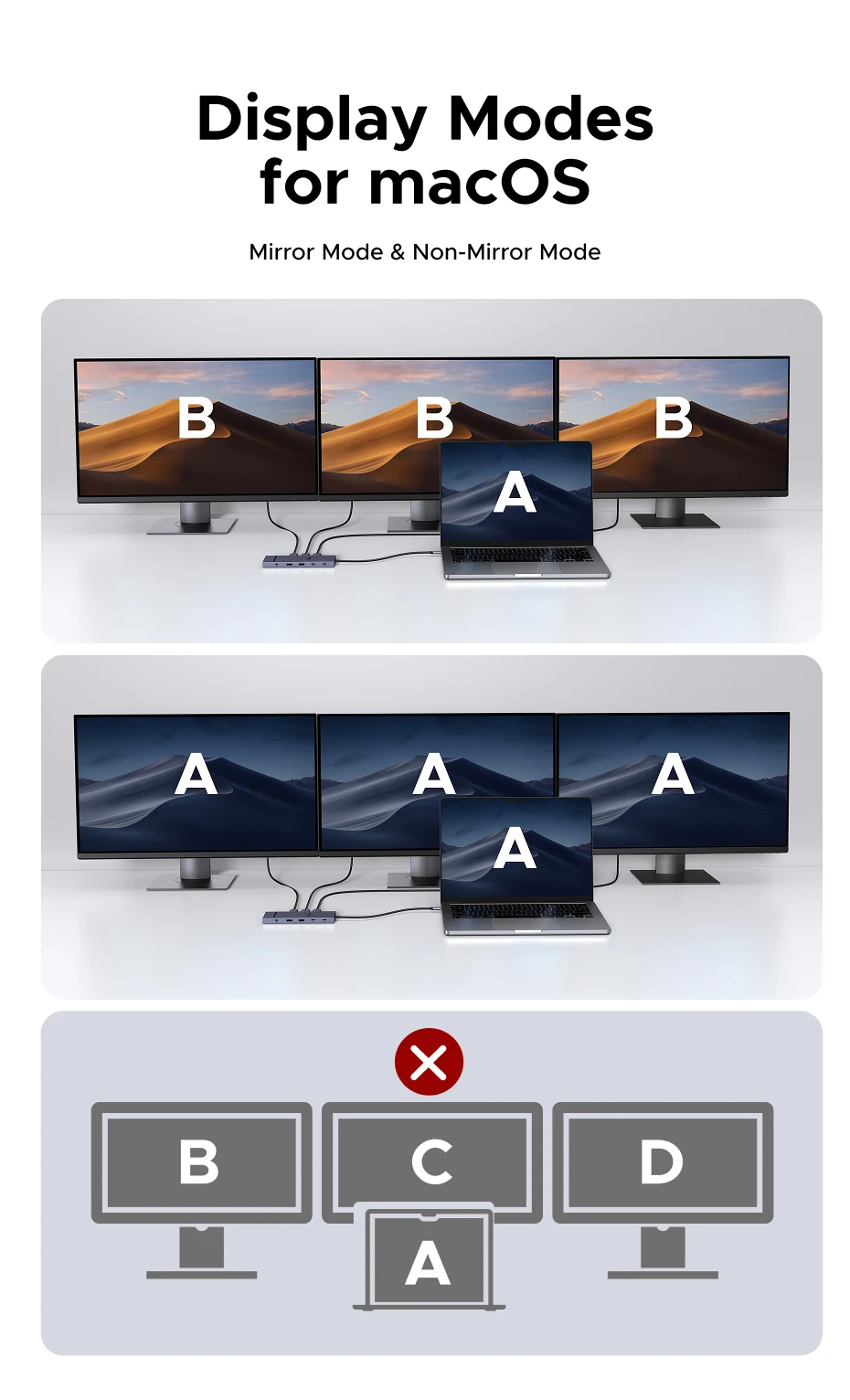

Display Modes for macOS
Mirror Mode & Non-Mirror Mode

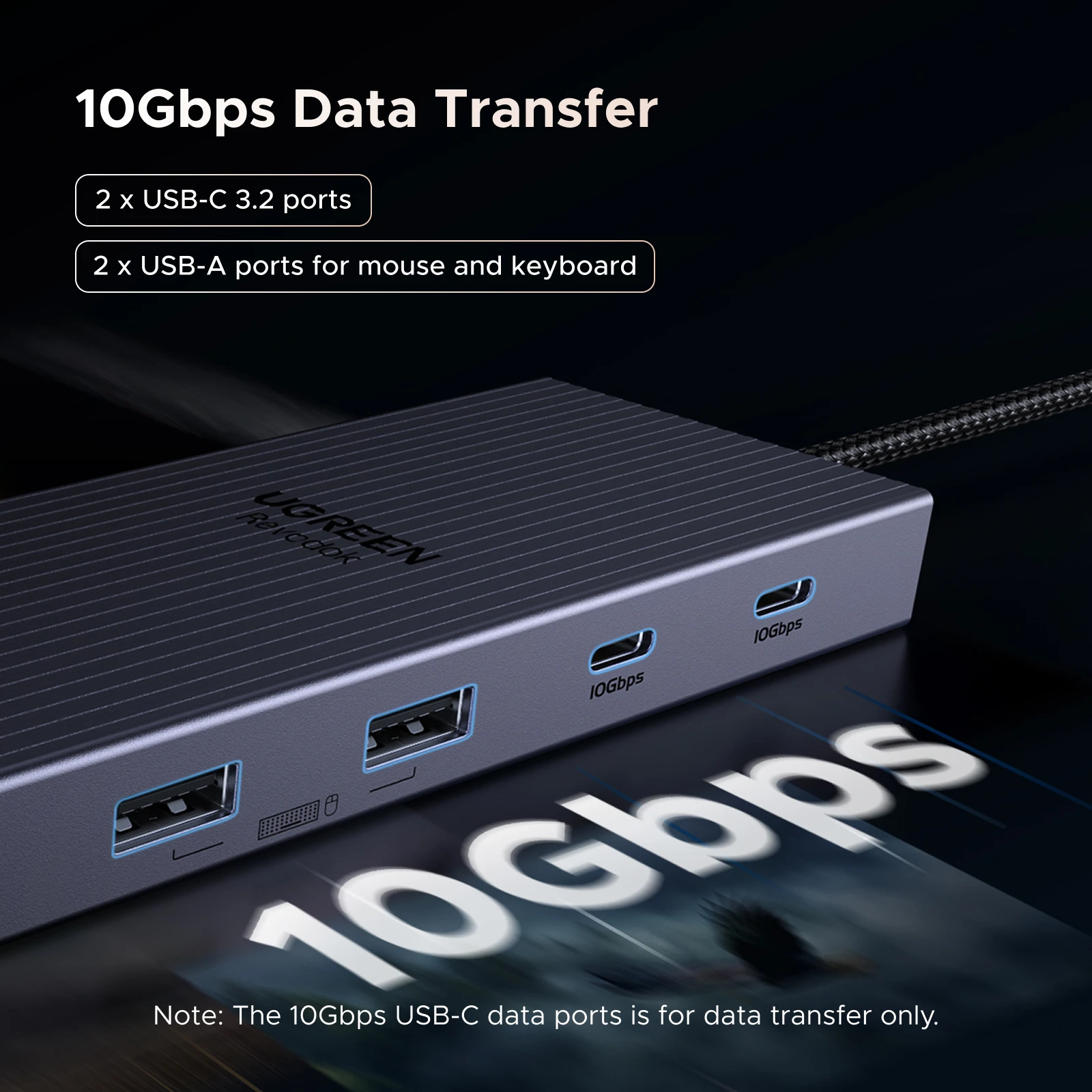

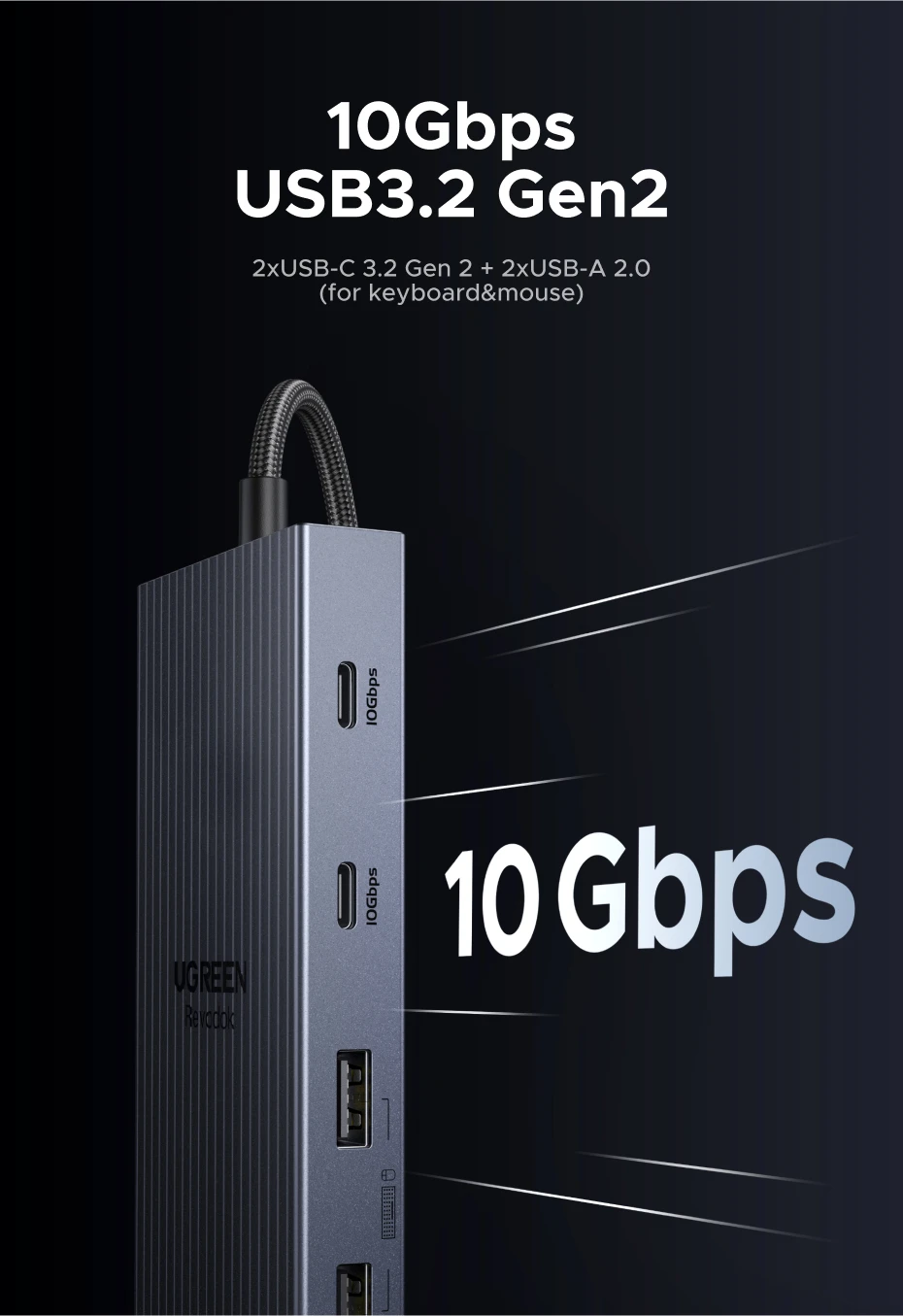

10Gbps USB3.2 Gen2
2xUSB-C 3.2 Gen 2 + 2xUSB-A 2.0(for keyboard&mouse)

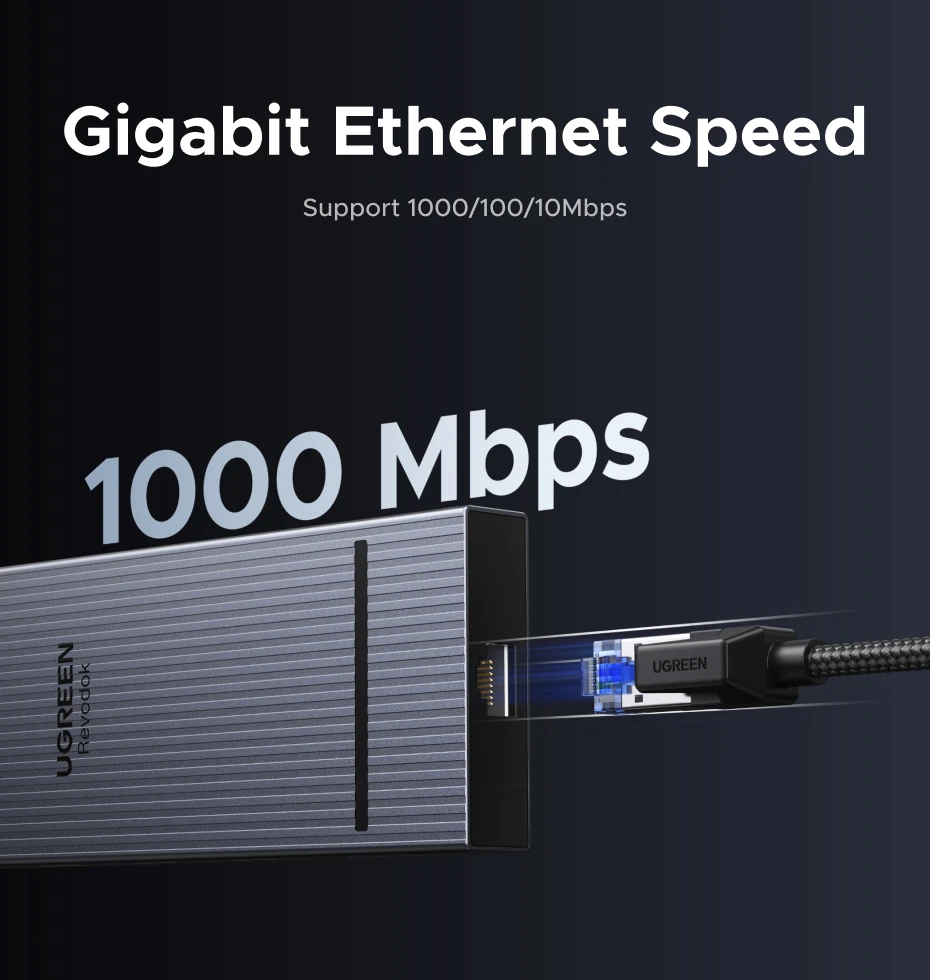

Gigabit Ethernet Speed
Support 1000/100/10Mbps

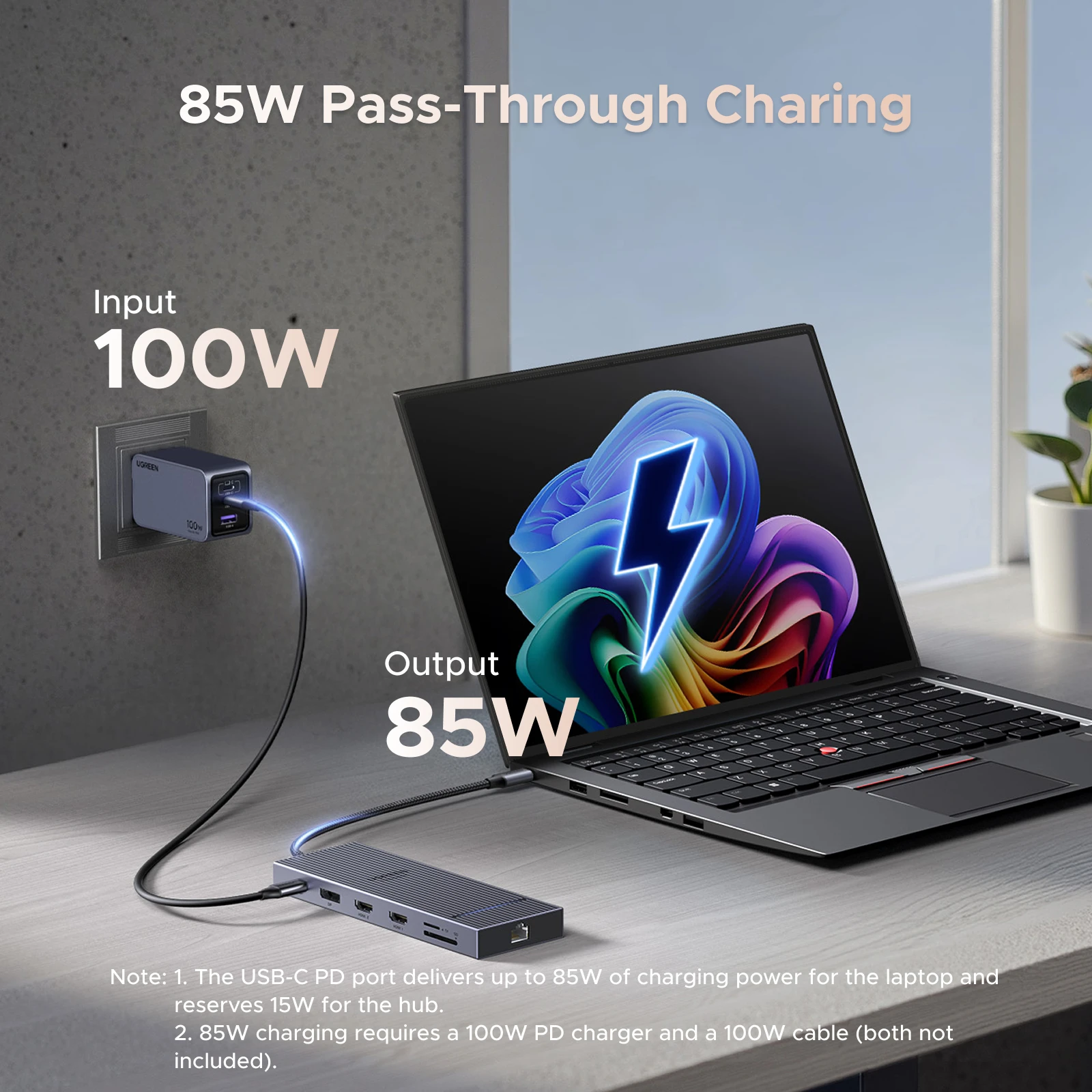

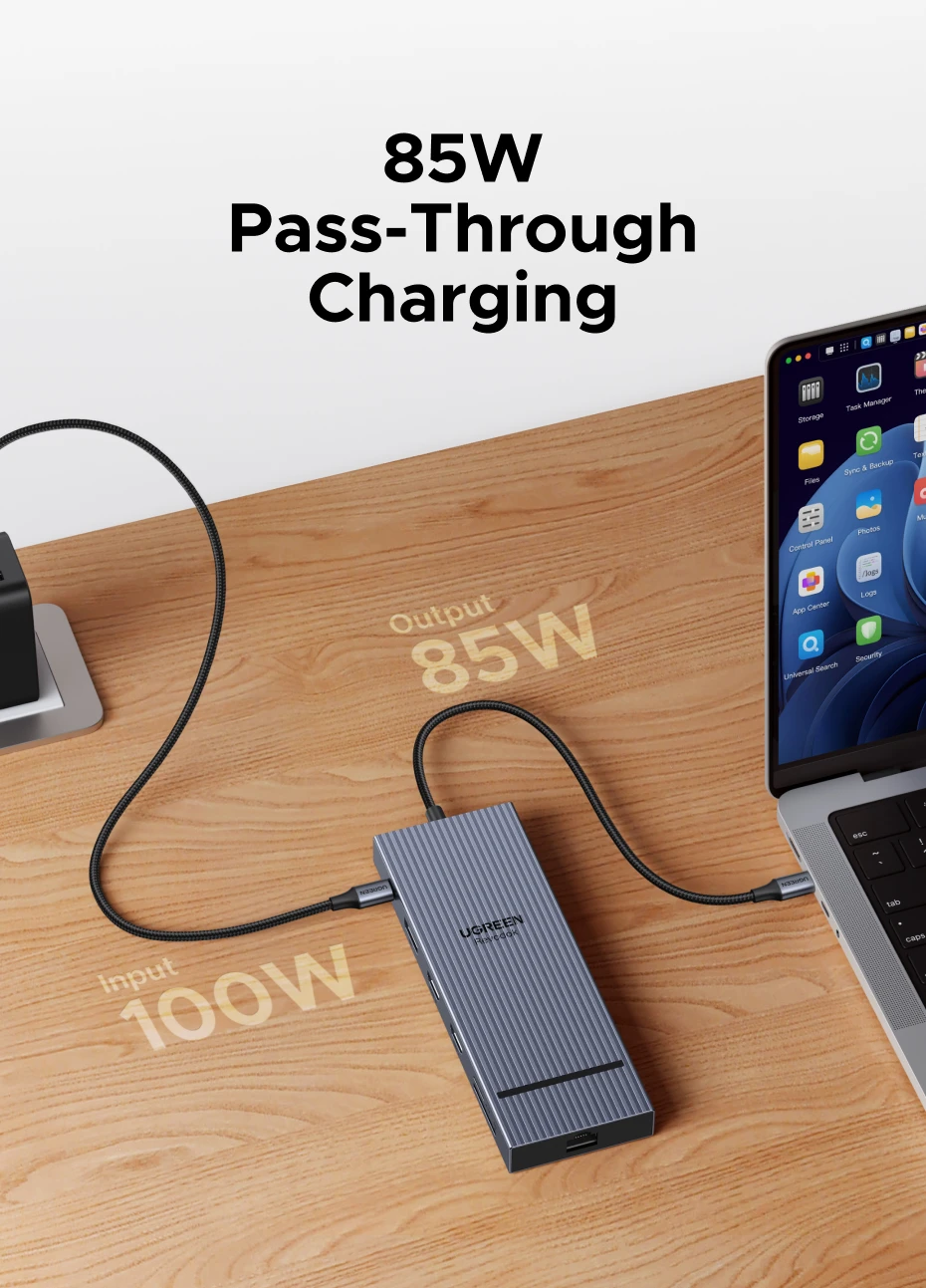

85W Pass-Through Charging

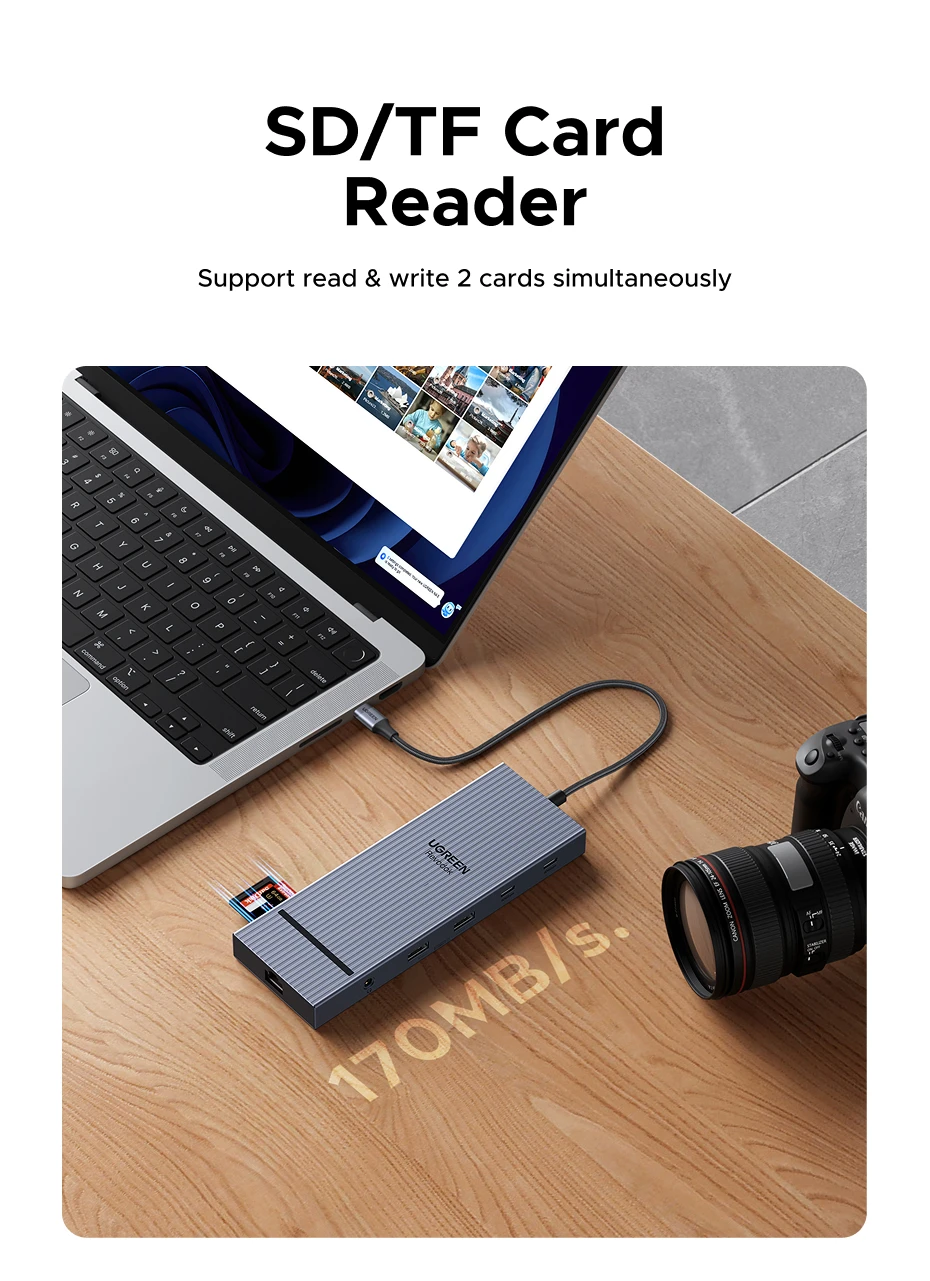

SD/TF Card Reader 170MB/s.
Support read & write 2 cards simultaneously

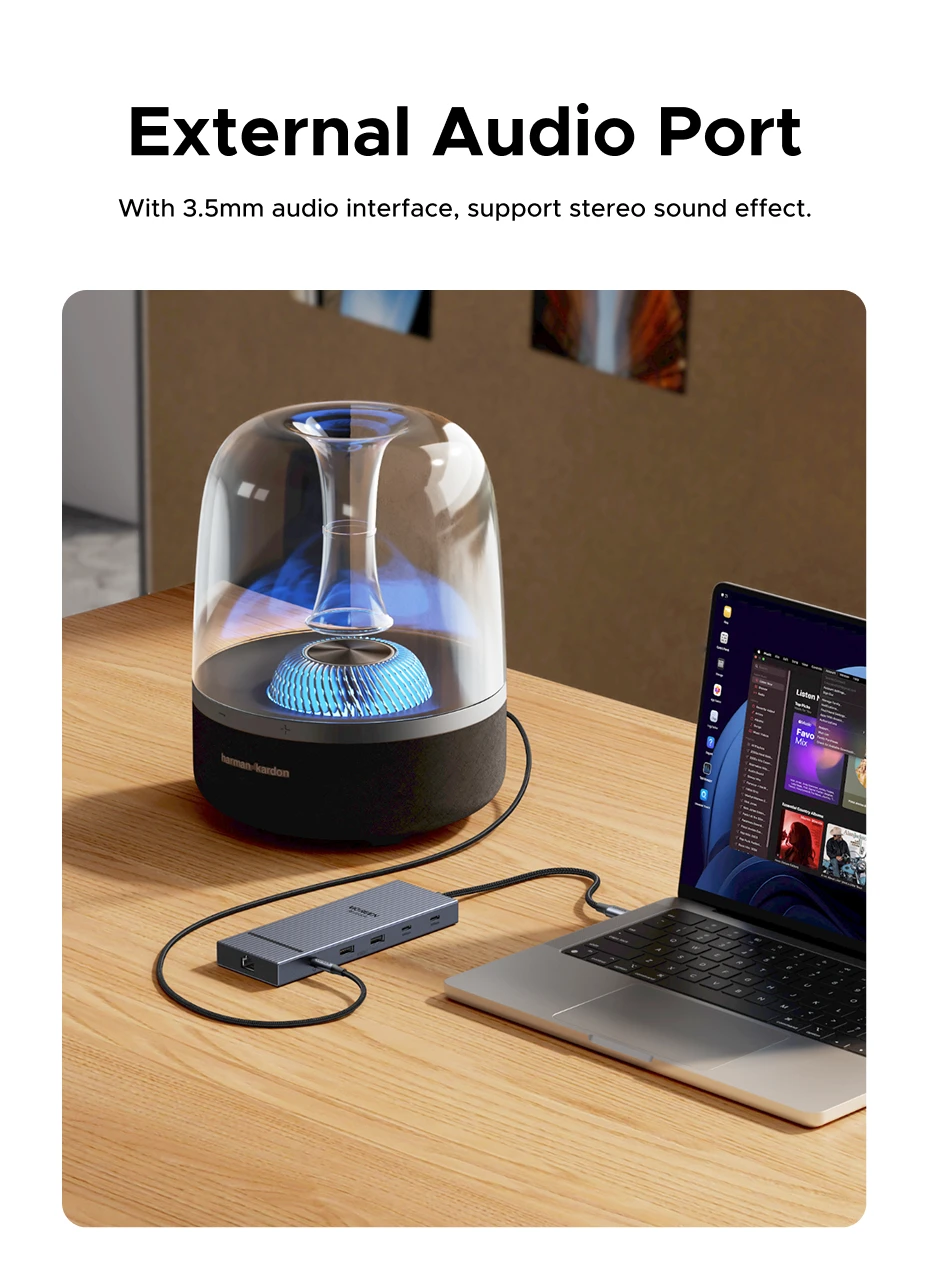

External Audio Port
With a 3.5mm audio interface, it supports stereo sound effects.

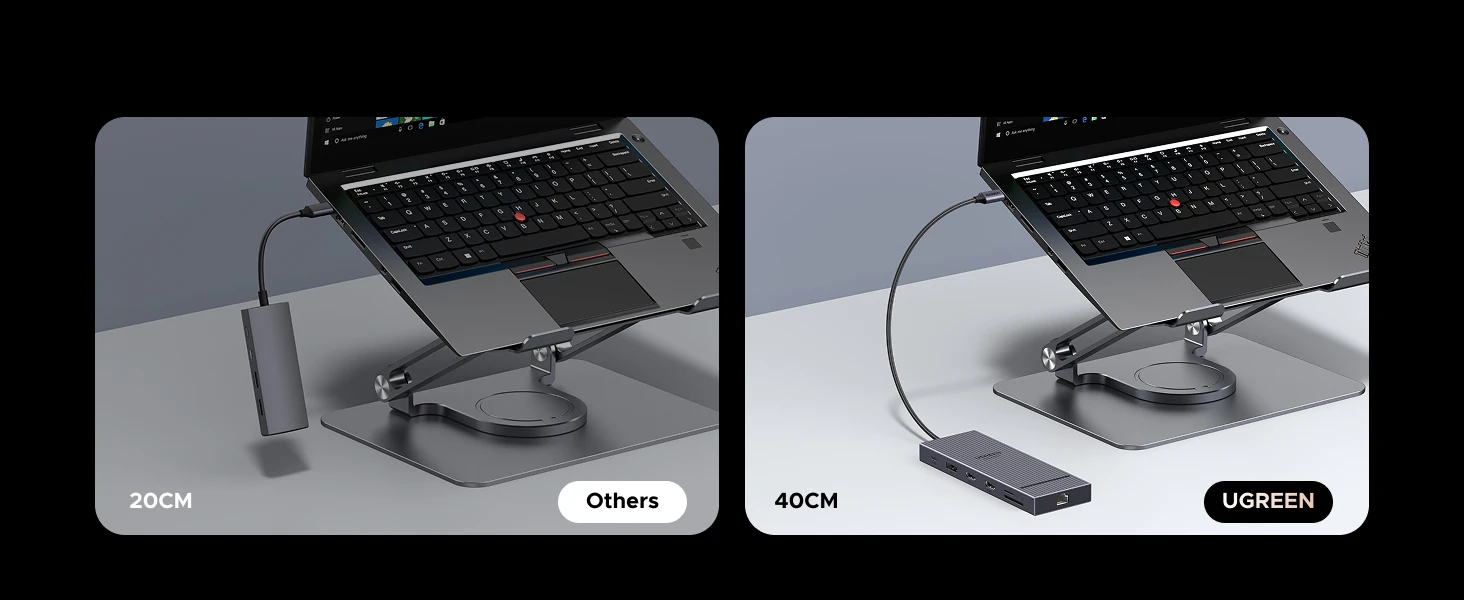

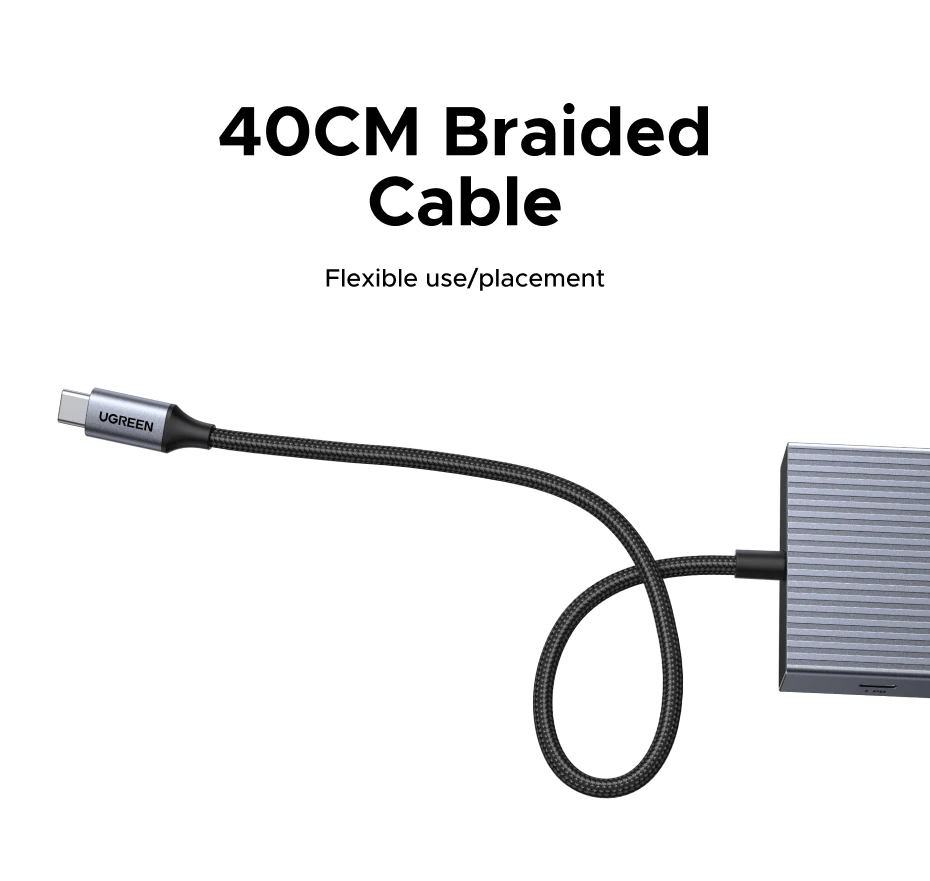

40 CM Braided Cable
Flexible use/placement
Wide Compatibility
Plug & Play

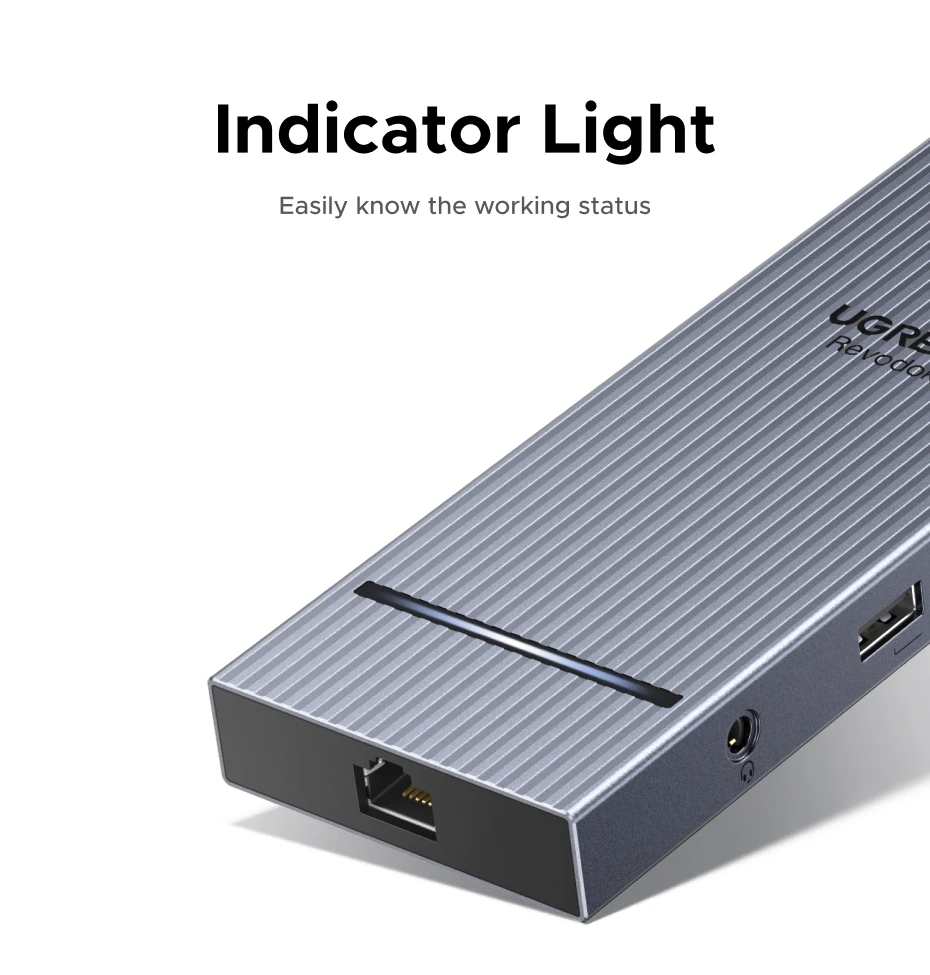

Indicator Light
Easily know the working status

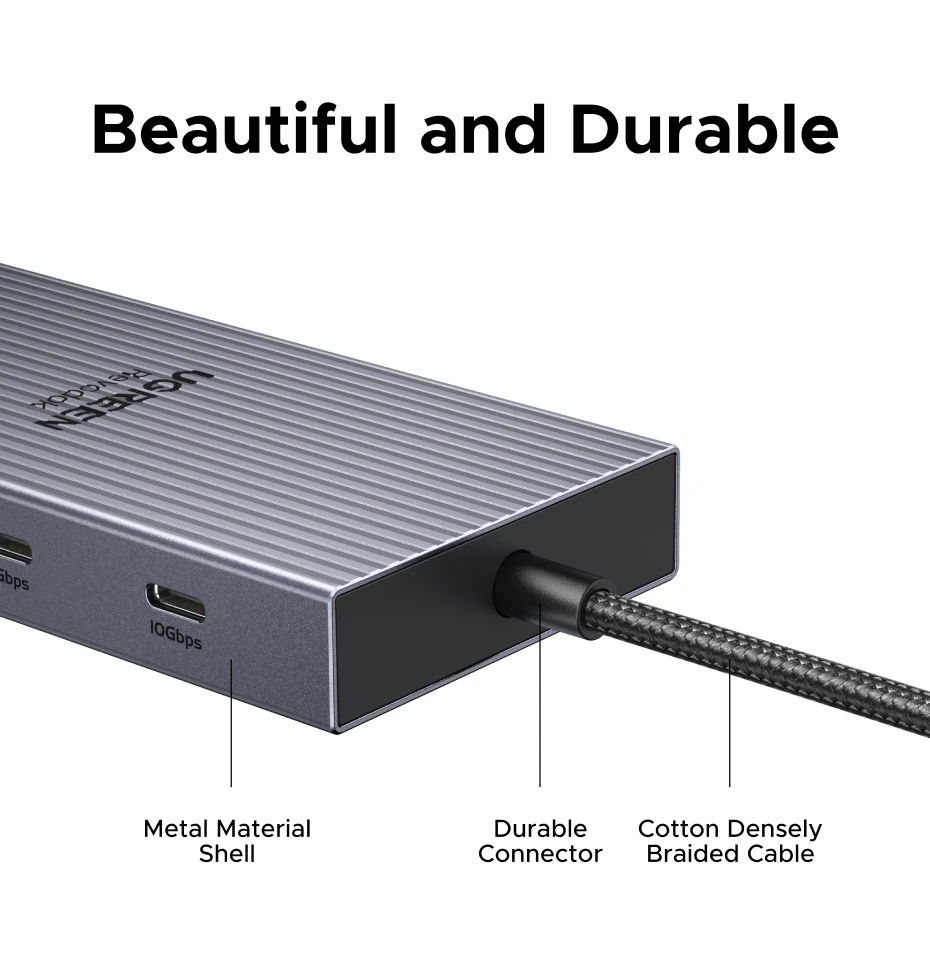

Beautiful and Durable
1. Cotton Densely Braided Cable; 2. Metal Material Shell; 3. Durable Connector.

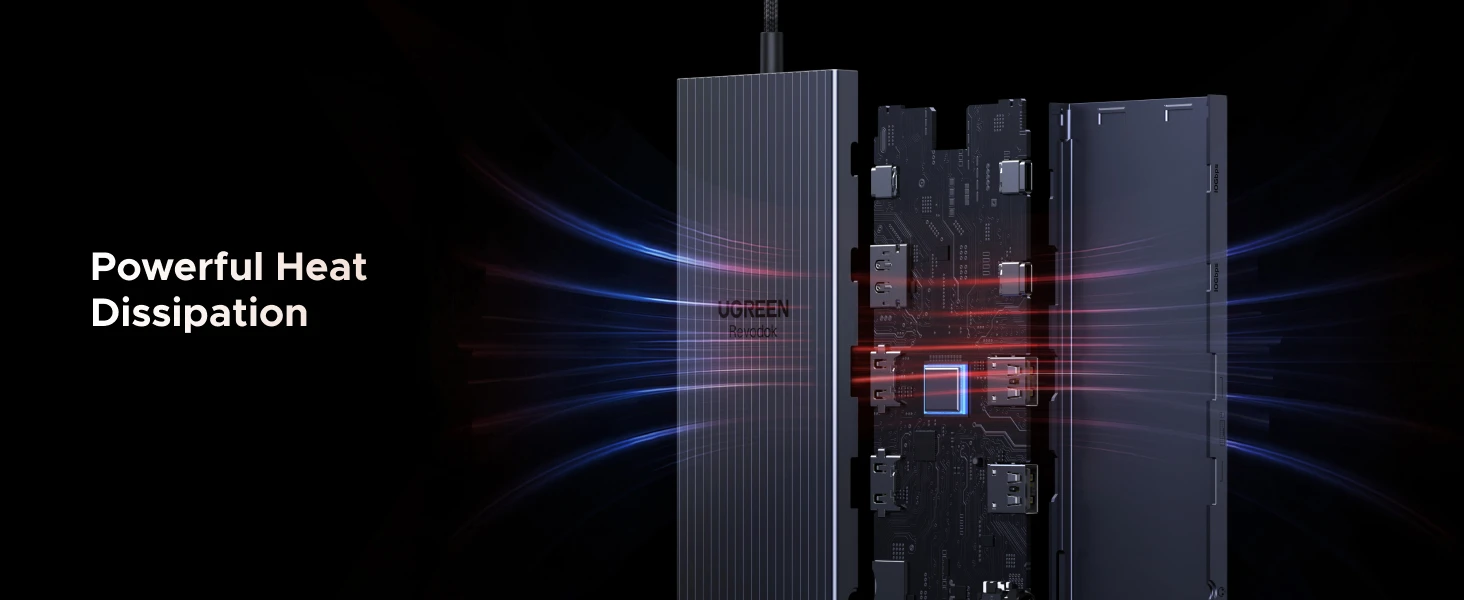

Powerful Heat
Dissipation

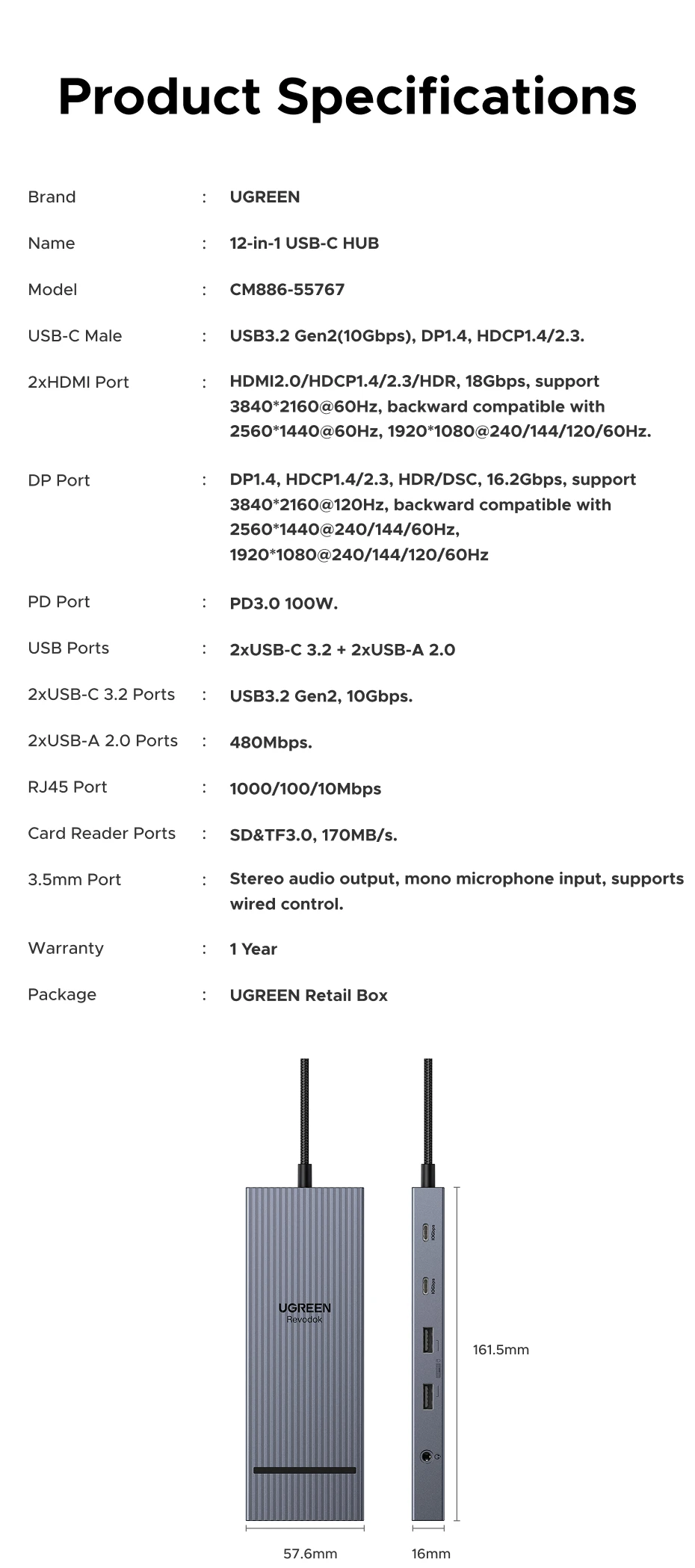

Product Specifications
Package Display

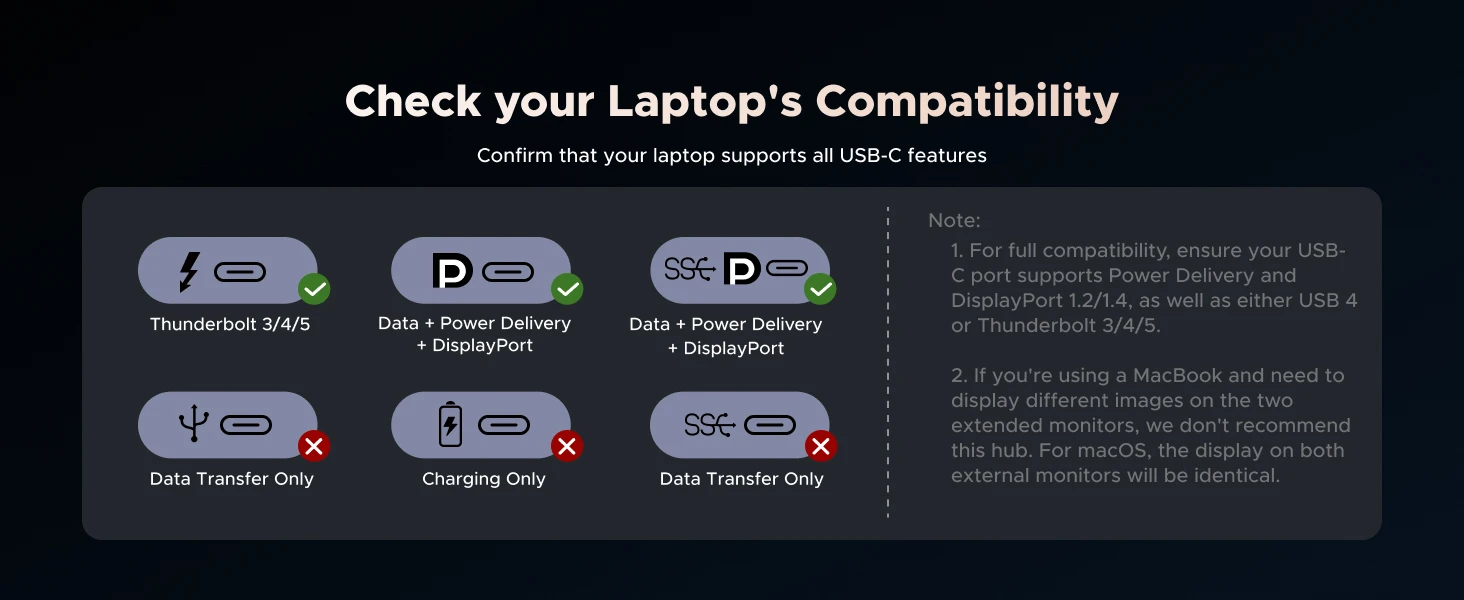

Check your Laptop’s Compatibility
Confirm that your laptop supports all USB-C features
